Setting the ElasticSearch max bucket aggregation

The Distinct Value filter has a default maximum of 65,536 values. Filtering a Dataset or Query (or any ElasticSearch request) that tries to exceed this maximum returns an error.

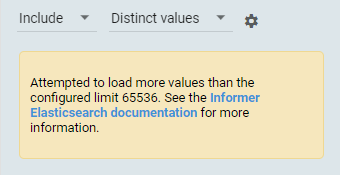

A Distinct values filter showing an error that more values were loaded than the configured limit of 65536
The Distinct Value limit error.

This maximum is an ElasticSearch server-level setting (search.max_buckets), so raise it on the ElasticSearch server. See the ElasticSearch search settings documentation.

Windows​

  1. Stop the Informer 5 and ElasticSearch 8 Windows services.
  2. From the root Informer install, go to the ElasticSearch config directory, for example elasticsearch\elasticsearch-8.x.x\config.
  3. Add this line to the bottom of elasticsearch.yml, replacing the value with your new maximum:
search.max_buckets: 200000
  1. Save the file and restart the Informer 5 and ElasticSearch services.

Docker​

  1. Bash into the ElasticSearch container (the container is usually named elasticsearch or elasticsearch8):
docker-compose exec elasticsearch8 bash
  1. Run this request, replacing the value with your new maximum:
curl -XPUT http://localhost:9200/_cluster/settings -H 'Content-Type: application/json' -d '{ "persistent": { "search.max_buckets": 200000 } }'
  1. Exit the container.
